Tube-Shell Heat Exchanger Design Calculation

...

Input Table
Quantity Value Unit
Tube side fluid Selection

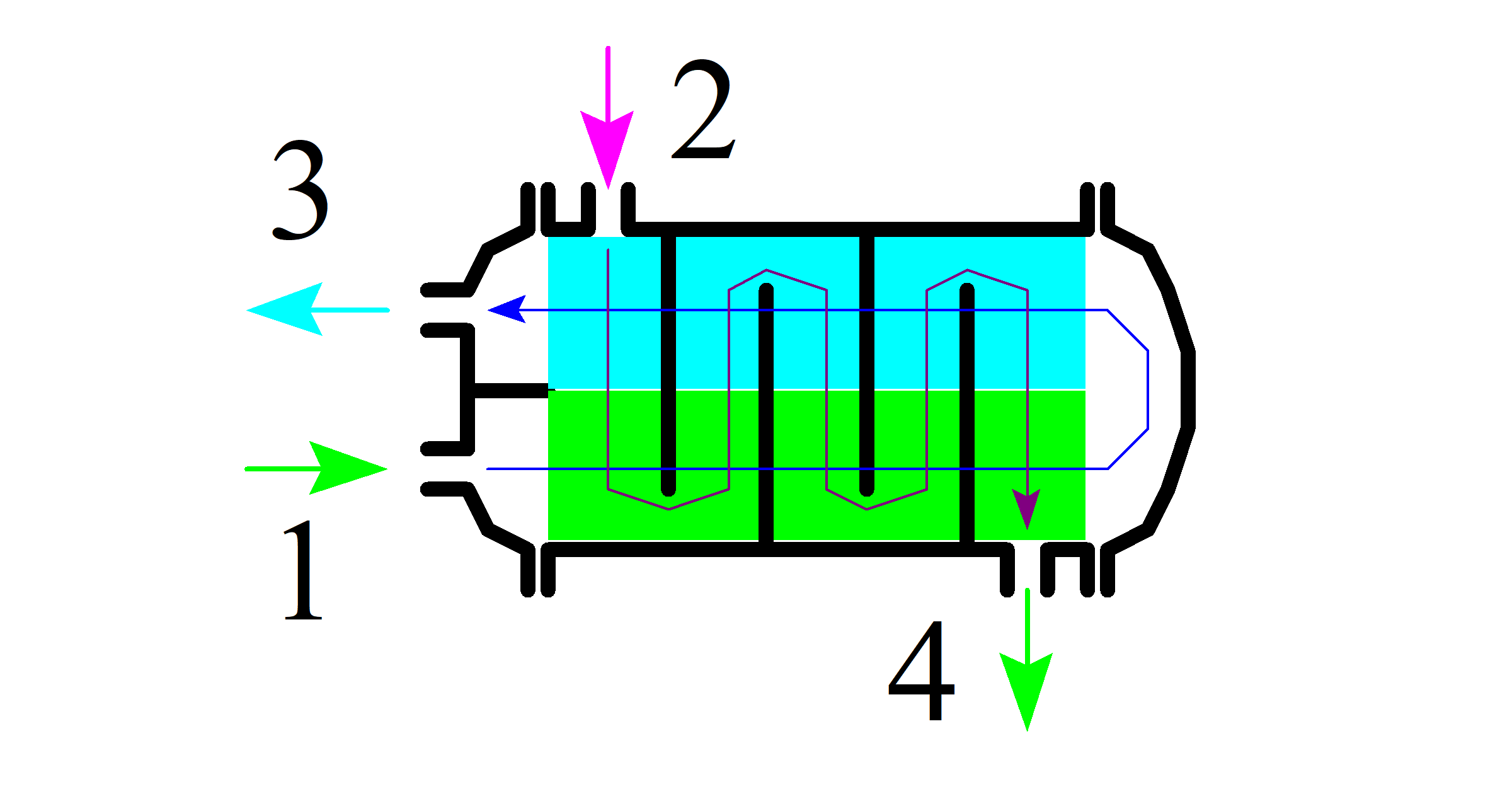

Tube side inlet 1 flow rate kg/h
Tube side inlet 1 pressure bar
Tube side inlet 1 temperature °C
Shell side fluid Selection
Shell side inlet 2 flow rate kg/h
Shell side inlet 2 pressure bar
Shell side inlet 2 temperature °C
Calculate mode CM(0=Design; 1=Check)
Heat transfer for design (Ingored when CM=1) kW
Tube arrangement (0=Triangle; 1=Square)
Ratio of baffle gap height to shell diameter
Tube flow passes
Tubes number of single pass
Single tube length (Ingored when CM=0) mm
Shell inside diameter mm
Baffle board number
Baffle board distance at inlet/outlet mm
Tubes spacing mm
Tube outer diameter mm
Tube inner diameter mm
Thermoresistance of dirt at tube side m2.K/W
Thermoresistance of dirt at shell side m2.K/W
Tube side heat transfer enhancement
Shell side heat transfer enhancement
Tube side pressure drop enlargement
Shell side pressure drop enlargement
Tube side fluid gas constant, 0=liquid, manual input J/(kg*K)
Tube side fluid density, manual input kg/m3
Tube side fluid specific heat, manual input J/(kg*K)
Tube side fluid dynamic viscosity, manual input Pa*s
Tube side fluid heat conductivity, manual input W/(m*K)
Shell side fluid gas constant, 0=liquid, manual input J/(kg*K)
Shell side fluid density, manual input kg/m3
Shell side fluid specific heat, manual input J/(kg*K)
Shell side fluid dynamic viscosity, manual input Pa*s
Shell side fluid heat conductivity, manual input W/(m*K)
Tube material(-1=See notes 0=Copper 1=Steel 2=Aluminum)
Tube density, manual input kg/m3
Tube heat conductivity, manual input W/(m*K)
Shell material(-1=See notes 0=Steel)
Shell material density, manual input kg/m3
Admissible stress of shell material, manual input MPa
Optimization object(0=Weight 1=cost)
Tube material cost cost/kg
Shell material cost cost/kg
Output Table
Quantity Value Unit
Tube side outlet 3 pressure 0 bar
Tube side outlet 3 temperature 0 °C
Shell side outlet 4 pressure 0 bar
Shell side outlet 4 temperature 0 °C
Tube side flow resistance 0 Pa
Shell side flow resistance 0 Pa
Heat transfer 0 kW
Tube side flow velocity 0 m/s
Shell side average flow velocity 0 m/s
Tube side heat exchange area 0 sqm
Shell side heat exchange area 0 sqm
Tube side Renaulds number 0
Shell side Renaulds number 0
Tube side heat exchange coefficient 0 W/(m2*K)
Shell side heat exchange coefficient 0 W/(m2*K)
Total heat exchange coefficient 0 W/K
Logarithmic mean temperature difference 0 °C
Heat exchange effectiveness 0 %
Single tube length, equals core length 0 mm
Baffle board spacing 0 mm
Shell inside diameter by estimation 0 mm
Shell thickness 0 mm
Tube side space volume 0 m3
Shell side space volume 0 m3
Tube side fluid weight 0 kg
Shell side fluid weight 0 kg
Weight/Cost (OB=0:weight 1:cost) 0 cost
Notes
1. This is a simplified tube-shell heat exchanger design
2. Material cost: use your local currency such as $/kg
3. Tube and fin material: -1 = input physical properties at bottom
4. Calculation mode: Design = calculate core length from cooling load;
    Check = calculate the cooling load from core length
